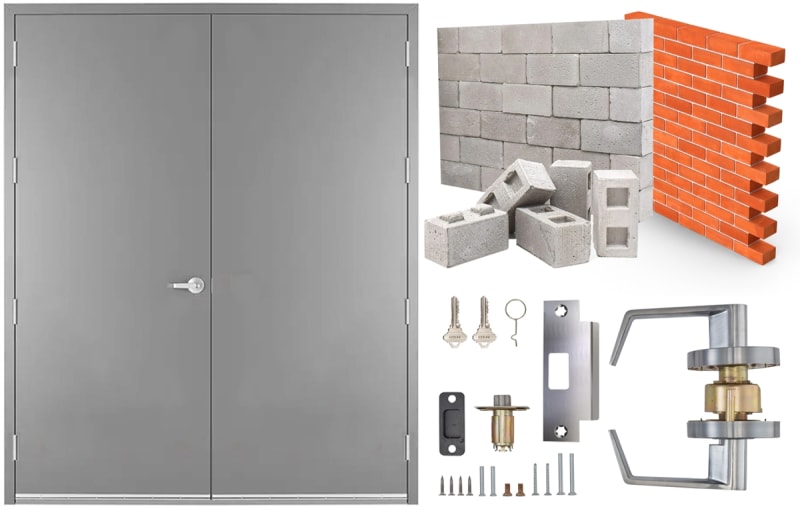

72 in. x 96 in. (6080) LHRA Commercial Industrial 18 Gauge Flush Hollow Metal Steel Double Door Insulated With Polystyrene Core, 16 Gauge Frame For Masonry Block Wall, and Hardware

72 in. x 96 in. (6080) LHRA Commercial Industrial 18 Gauge Flush Hollow Metal Steel Double Door Insulated With Polystyrene Core, 16 Gauge Frame For Masonry Block Wall, and Hardware

Auto Door and Hardware
List Price: $6,894.46
$
Savings: $
Choose your options:
Frame Type
Frame Head
Frame Head:
Bottom Door Seal (Recommended Per Fire Code)
Frame Anchors
Fire Label
Cylindrical Lock Function
Door Closer (Required By ADA & Fire Code)
Door Frame Seal (Recommended Per Fire Code)
Overhead Rain Deflector
Overhead Rain Deflector:
Kick Protection Plate (Saves Door From Damage)
Door Stop (Prevents Damage To Door)
Door Holder (Not Used On Fire Doors)
ADA Threshold (Recommended Per Fire Code)
Part Number: GLA-6080-MB-LHRA-L
Made To Order; Usually Ships in 3 Weeks

FREE SHIPPING ON ORDERS OVER $200

72 in. x 96 in. (6080) LHRA Commercial Industrial 18 Gauge Flush Hollow Metal Steel Double Door Insulated With Polystyrene Core, 16 Gauge Frame For Masonry Block Wall, and Hardware

Gladiator hollow metal doors are the perfect secure door solution for any commercial or industrial building. Our heavy duty flush steel doors provide durability for all levels of foot traffic and use. The smooth steel face will enhance the look of your building. These commercial grade doors are perfect for new construction or remodeling.

Door Specifications

  • Heavy Duty, SDI Level 2, 18 Gauge Steel Face Sheets
  • Gavannealed Steel For Corrosion Resistance and Paint Adhesion
  • 1-3/4 in. Door Thickness
  • Insulated Polystyrene Core, R Value: 7.14, U Value: 0.14, STC Rating: 33
  • 161 Cylindrical Lock Prep and Reinforcement
  • 4.5 in. x 4.5 in. Hinge Prep and 7 Gauge Hinge Reinforcement
  • 12 Gauge Door Closer Reinforcement
  • Factory Baked On Rust Inhibiting Primer (Can Be Painted, But Not Required)
  • 16 Gauge Inverted Top and Bottom Channel
  • Steel Cap Reinforcement
  • UL Listed
  • Hardware Preparations: In Accordance With ANSI A250.6-1997
  • Hardware Locations: In Accordance With ANSI/DHI A115

Frame Specifications

  • 16 Gauge Galvannealed Steel
  • 4.5 in. x 4.5 in. Hinge Prep and 7 Gauge Hinge Reinforcement
  • Precision Corners
  • Heavy Duty Strike Reinforcement
  • Unequal Rabbet, 5/8 in. Stop Height
  • Strike Reinforcement
  • UL Listed
  • Hardware Preparations: In Accordance With ANSI A250.6-1997
  • Hardware Locations: In Accordance With ANSI/DHI A115

Hardware Included

  • Grade 1 Cylindrical Lock
  • Anti Jimmy HD Ball Bearing Hinges

Rough Opening and Sizing

  • Rough opening and sizing based on selection of a 2 in. frame head
  • Exact Frame Size: 76 in. x 98 in.
  • Recommended Rough Opening (Butted Against Wall): 76-1/2 in. x 98-1/4 in.
  • Recommended Rough Opening (Wrapped Around Wall) 74 in. x 97 in.

Brand: Automatic Door and Hardware
Model: Gladiator
Part Number: GLA-6080-MB-LHRA-L
Catalog: Commercial Steel Doors
Level: Heavy Duty, SDI Level 2, 18 Gauge Steel Face Sheets
Compliance: Meets ANSI A250.8-1998 (SDI-100)
ADA Compliant: No
Hardware Preparations: In Accordance With ANSI A250.6-1997
Hardware Locations: In Accordance With ANSI/DHI A115
Nominal Door Size: 72 in. x 96 in.
Exact Door Size: 72 in. x 95-1/8 in.
Rough Opening Size: 76-1/2 in. x 98-1/4 in.
Reinforcement: 7 Gauge Hinge Reinforcement, Door Closer Reinforcement
Door Finish: Factory Applied Baked On Rust Inhibiting Gray Primer. Primer can be painted after installation if desired, but not required.
Fire Rating: Fire Rated. WHI Fire Labels Up To 3 Hour Fire Rating For Exterior Doors Available.
Buy American Act Compliance: Made In USA
Core: Polystyrene
Handing: Left Hand Reverse
Hinges: Universal Hinge Preparation For Field Conversion From Standard Weight (.134) Hinges To Heavy Weight (.180) hinges
Edges: Square Hinge and Lock Edges - Full Height, Epoxy Filled Mechanical Interlock Edges
Channels: Top and Bottom Channels
R Value: 7.14
U Value: 0.14
STC Rating: 33
Prep: 161 Cylindrical Lock
Hinge and Lock Locations: Gladiator
