Commercial Automatic Sliding Door, 4 Panel Exterior Bi Part Automatic Door System With DC Motor, Microprocessor Control, Safety Sensors, and Hardware, Glass Not Included
Item Return Policy: Assembled Per Order, Non-Returnable
Choose your options:
Door Stile Size
Finish
Finish(required):
Maverick Door Width(required):
Bottom Rail Size
Glass Stop Size
Glass Stop Size(required):
Threshold
Additional Sliding Door Accessories
Electric Lock
Electric Lock:
Part Number: MAVERICK-SO-SX-SX-SO
Made To Order; Usually Ships in 3 Weeks
FREE SHIPPING ON ORDERS OVER $200
Commercial Automatic Sliding Door, 4 Panel Exterior Bi Part Automatic Door System With DC Motor, Microprocessor Control, Safety Sensors, and Hardware, Glass Not Included

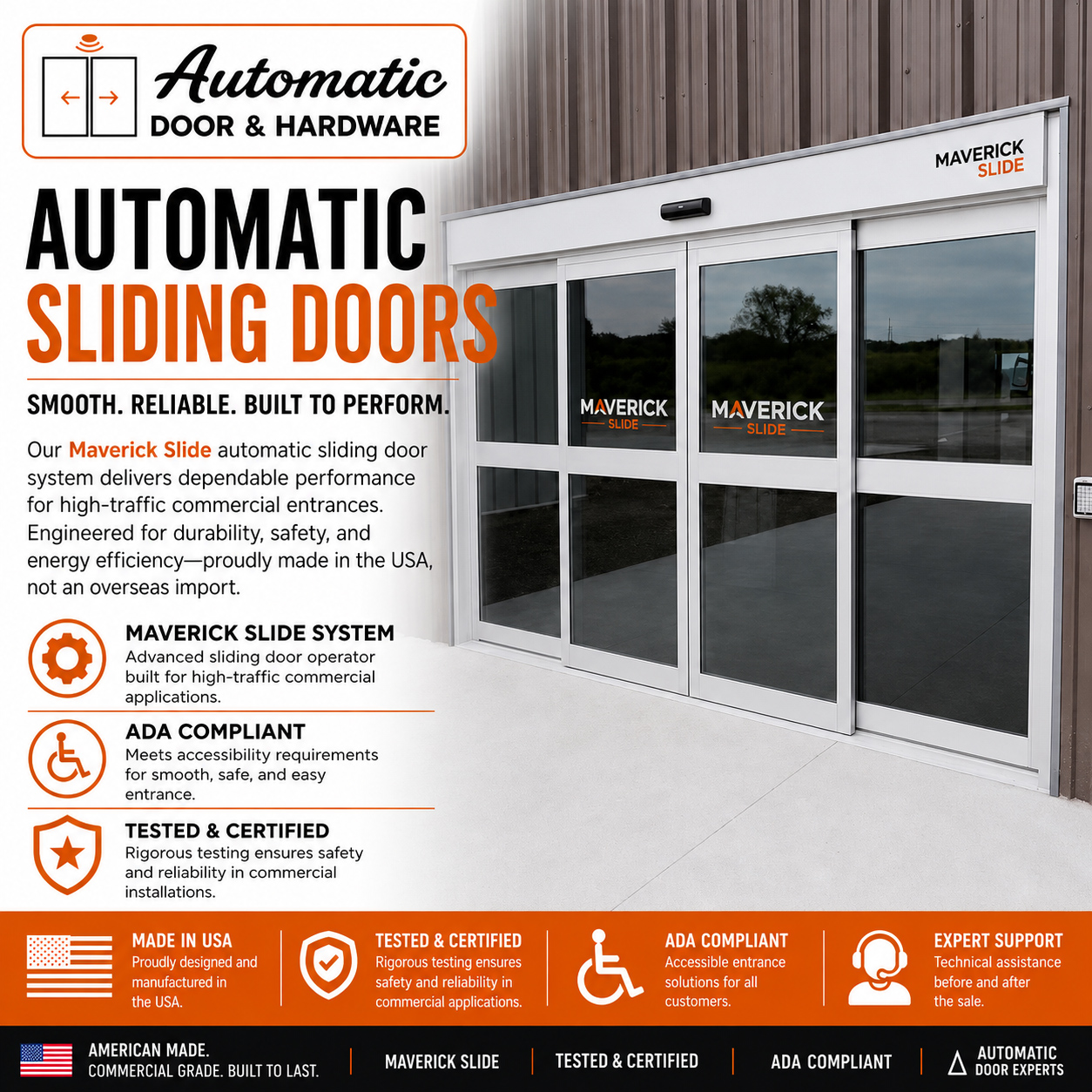

The Maverick Pro automatic sliding door is the perfect solution for commercial, retail, grocery, healthcare, education, and institution applications. Included with each Maverick automatic sliding door package is state of the art dual technology motion presence sensors designed to detect pedestrian traffic and communicate with the advanced on board control system. Business owners and building owners will have the peace of mind knowing the safety protocols integrated into the Maverick automatic door control system. This automatic sliding door system is perfect for any level of foot traffic. The high horsepower DC motor can hold up to any level of abuse. Hard wearing rollers and timing belt, prevent any frequent maintenance common to other competitor door models.
Door Size and Opening Specifications
Frame Width
Frame Height
Clear Door Opening
Vertical Opening
Full Breakout Opening
Rough Opening Width
Rough Opening Height
120"
92"
48"
84"
105"
120.5"
92.25"
144"
92"
60"
84"
129"
144.5"
92.25"
168"
92"
72"
84"
153"
168.5"
92.25"
Important Notes
Electrical Requirements: 120VAC, 5 Amp minimum to power operator by electrical contractor.
Rough opening shall provide 1/4" shim space on sides and top of package
Limits of activation and safety zones are for reference only; See ANSI/BHMA A156.10 for detailed requirements
See specifications for additional information.
All Standard Packages Include
Full Breakout Design - All panels can break away in the event of an emergency
5 position switch knob or keyswitch with ON / OFF / REDUCED OPEN / HOLD OPEN / ONE WAY
Clear or Dark Bronze Anodized Finish
Aluminum Header, operator, control and hardware
Digital microprocessor control with built in diagnostics
Lock Indicator - Added to the inside rail of the door just above the thumbturn lock. Visually lets operator know if the door is locked or unlocked. Useful for powering down the system and locking up after hours
Product Features
Self Supporting Header
Our header construction virtually eliminates header deflection which is common on "J" shaped headers like the others have. Header deflection is responsible for excessive, premature wear to costly components such as motors and gearboxes. The maverick uses Jambs to support the header, but they are not required to mount. The header can be mounted in a between wall application that eliminates the jambs and gives a much cleaner finish aesthetically.
Security Interlocks
Security interlocks, which are added to the vertical stiles, seal and secure the space between sliding panels and sidelites.
Dual Technology Sensors
We use dual technology sensors that take advantage of motion and infrared presence sensing. This allows for safe, smooth and reliable operation for any pedestrians moving through the doorway. The sensors have fully adjustable patterns for activating the door at your preferred distance.
Electronic LCD Display
The Maverick door system now includes an LCD display for easy user friendly adjusting and communicating with the door system. The LCD display will show the door's current status on the LCD screen. This LCD display can be remotely controlled by the included infrared remote. Using the LCD display, you will be able to change the operating mode, settings of the door, look at counters (cycle counter, etc.), diagnose the door and more.
Made In The USA
Our entire system is made and assembled in the USA
